PATlok Nylon Patches

How does it work?

The PATlok is permanently applied to the threads over a rotation angle of 120°-180°. The first two or three threads are kept free of PATlok so that the bolt can be assembled easily. When the bolt connections are assembled the PATlok layer is compressed, which brings about good metal-to-metal contact in the flanks of the thread where no PATlok is present.

The PATlok Nylon Patch constantly tries to return to its original volume, thus ensuring a constant frictional force across the engaged thread form. The PATlok connection does not loosen, even in the event of external shocks or vibrations. It is, however, a very simple matter to subsequently readjust the bolt connection or to reuse it.

Properties of PATlok Nylon Patches

Purpose	Locking reusable (M2 up to M20 recommended range)
Angle of coating	120°-180° standard patch
Shelf life	Up to 20 years
Ambient temperature	-40°C to +150°C	(subject to application)
Resistance	Resistant to most Fluids	(subject to application)
Use	Re-usable up to 5 times	(subject to application)
Specifications	Meets OEM and Automotive Specifications

Types of PATlok Nylon Patches

• Length and position of patch to suit Customer Requirement
• Standard Patch: 1-2 Threads Lead 1 x Fastener Diameter = Patch Length
• Patch Build available in Low, Medium or Heavy (infinitely variable to suit)

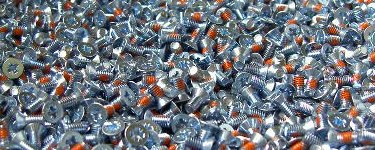

• Colour – N11 Nylon patches are available in Orange, Blue, Yellow and Red.
  Orange is our standard colour. All colours have the same performance characteristics.
• Special Length or position of Locking Patch Available on request
• Thread Locking Patches for small fasteners
